The Goal is the Perfect Print, Nothing More and Nothing Less

Schattdecor, a family-owned international manufacturer of surface decors, has responded to the increased quality demands of global markets by upgrading its printing machines with latest-generation BST inspection and web monitoring systems.

A pilot system tailored to the conditions of gravure printing proved so successful that the company decided to acquire 12 iPQ-Check inspection systems and 12 iPQ-View web monitoring systems from BST. Eight of each of these systems have been integrated at locations in Germany.

Schattdecor, based in the town of Thansau in Bavaria, is a leader in the global market for decor printing, and its modern surface decors have become quite popular. These surfaces, which are produced with gravure-rotary and digital printing techniques, are used on furniture and for laminate floors. Increasingly, they are also playing an important role in travel trailer interiors and in public spaces. Visually, the decors appear identical to natural materials such as wood or stone. Customers around the world are impressed by the authentic feel, brilliant colors and designs of the company’s latest developments, which are based on textiles, sand, concrete and pure fantasy decors.

Gravure printing, especially – a high-speed print method for premium products like decorative papers and films – requires maximum precision and continuous, comprehensive quality control. At the same time, the costs for material and energy must be kept low, and material waste must be avoided as much as possible. The aim, in other words, is to achieve nothing less than the perfect print result, to make printing processes as profitable as they can be and every customer one hundred percent satisfied.

The challenge of gravure printing

Schattdecor has been working successfully with BST for many years. Recently, in response to increased demands in gravure printing, the company began looking for a solution that can be used to show decors at full width and with a particularly high accuracy on screen. In decor printing, in particular, correctly identifying printing errors or substrate defects early on is a major challenge, because they can be difficult to differentiate against the background of grained wood patterns or lively fantasy designs. “In the past, the printing press had to be stopped to take a sheet from the role and check it. With the new BST systems, this step can often be avoided. And if it is needed at some point after all, the response times are much shorter. That makes quality control easier for the machine operators and saves material,” explains Josef Maximilian Hintler, a project engineer at Schattdecor.

Faster than the human eye

Anomalies in the decor are automatically reported by the BST system iPQ-Check and displayed at high resolution by iPQ-View. Thanks to the good resolution of the cameras, they can be inspected without interrupting the printing process. The systems are many times faster than the human eye. They are completely reliable in identifying both recurring defects and one-time errors and allow an immediate evaluation during the ongoing production process. In the interest of boosting efficiency, operators can often refrain from performing subsequent quality checks on rewinders or stopping a production process. They are also supported in their quality control efforts by a complete log of events that have occurred during printing.

iPQ-Check and iPQ-View are the base modules of the versatile iPQ-Center. Various additional features are available as options, such as extra cameras and displays, or special illumination modes.

iPQ-Check: one hundred percent print inspection at full production speed

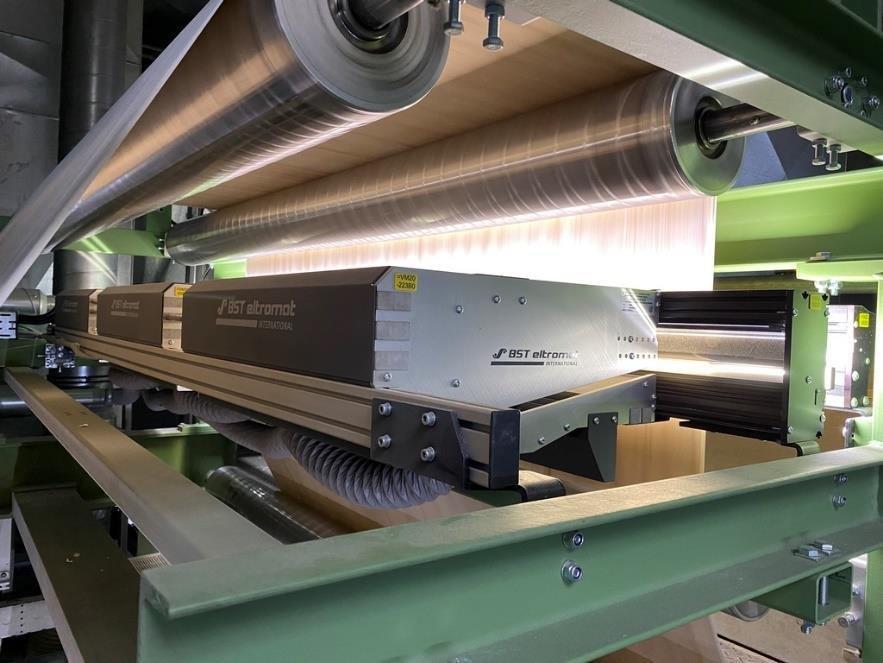

iPQ-Check is an innovative 100% print image inspection system for quality assurance that enables inspection across the entire print area and can be fully integrated into the digital workflow. In conjunction with LED lighting, three high-resolution line scan cameras identify defects in real time and provide high-definition color image data at machine speeds of up to 1,000 m/min and web widths up to 2,800 mm. A machine can be equipped with up to four cameras. The iPQ-Check system quickly and reliably detects defects like fogging or streaking even on decors with rich and lively patterns. This allows the operators to intervene right away in order to correct the problem – preventing wasted material and additional costs. Furthermore, iPQ-Check is also suitable for highly reflective materials, holograms and transparent materials as well as those that are highly flexible.

The intuitive operating concept minimizes response times and allows the operator to give more attention to other work. Christoph Kalb, a project manager at BST, cites further benefits: “iPQ-Check is the ideal solution for first-class print inspection. The system not only supplies reliable results but is also fun to use. And more iPQ products can be integrated into the user interface at any time.”

iPQ-View: high-precision web monitoring for flawless print results

As the perfect complement to the iPQ-Check inspection system, the old Web Video systems of BST/Eltromat have been replaced with the more advanced iPQ-View web monitoring system. Digital web monitoring supports continuous inspection of production results and serves as an effective quality control measure while the printing process is under way.

Coupled with high-resolution 3-chip HD cameras, the intelligent image-processing software of the system enables print image visualizations of the webs at high levels of detail and color fidelity during the printing process. Even weak contrasts are displayed, which means the system can make it possible to see “invisible” problems, like areas where finish is missing or the image is fogged. At the push of a button, the image will be displayed with improved contrast. Based on this view, informed quality-assurance decisions can be made, along with any required adjustments. Volker Reinholdt, product manager at BST, comments: “When it comes to image quality and features, iPQ-View leaves nothing to be desired and allows full-coverage print inspection. As part of the iPQ-Center, these products are integrated seamlessly into a unified user interface.”

User-friendly interface

Both iPQ-Check and iPQ-View are integrated into a unified and intuitive multi-touchscreen in the iPQ-Center, which offers prominent and easy-to-read notifications of any faults that occur. Every defect is documented with the first and last defect image, as well as the image of the worst defect. This allows fast and informed decisions to prevent waste.

Tailored installation

Before the new systems were put into service at Schattdecor, they had to be adapted to the conditions in gravure printing. The new iPQ-Check inspection system had never been used in decor printing before. As part of the test phase, the system was adjusted so that it can now detect defects even in wood decors with branch structures and shifting grain patterns.

Creating room for the system in the existing printing machine required developing a steel structure through which to guide the paper web after printing. As a result of the customized installation, the system is well protected but still easily accessible. The additional screen was incorporated into the ergonomic operating console so that, as before, the system can be monitored and adjusted from the management station, too. During the test phase, smaller optimizations were carried out as well in order to adapt the system to the special requirements in decor printing.

Schattdecor itself installed the BST systems, including the wiring and insulation. The steel structures used for the mechanical integration of the systems were built by a partner firm hired by Schattdecor.

Smooth start-up after extensive test phase

For a year, the pilot system was thoroughly tested until all of the challenges had been overcome. The installation of the systems required only two to three days per machine. When they were started up, an engineer from BST once more examined all the wiring. Employees at Schattdecor were given training as well, and final optimizations were made to the machines.

Conclusion

Schattdecor has been using systems from BST/Eltromat for over twenty years. These include web monitoring systems of various generations as well as register control systems. The 100% inspection system iPQ-Check now forms a valuable addition to that equipment. Hubert Rothmayer, who has been working at Schattdecor for more than 20 years and knows how the printing business has changed during that time, comments on the advantages: “BST is a reliable and skilled partner, and we’ve been working with them for many years. From the reliability, user-friendliness and performance of the systems to the service and support – everything is just right.”
