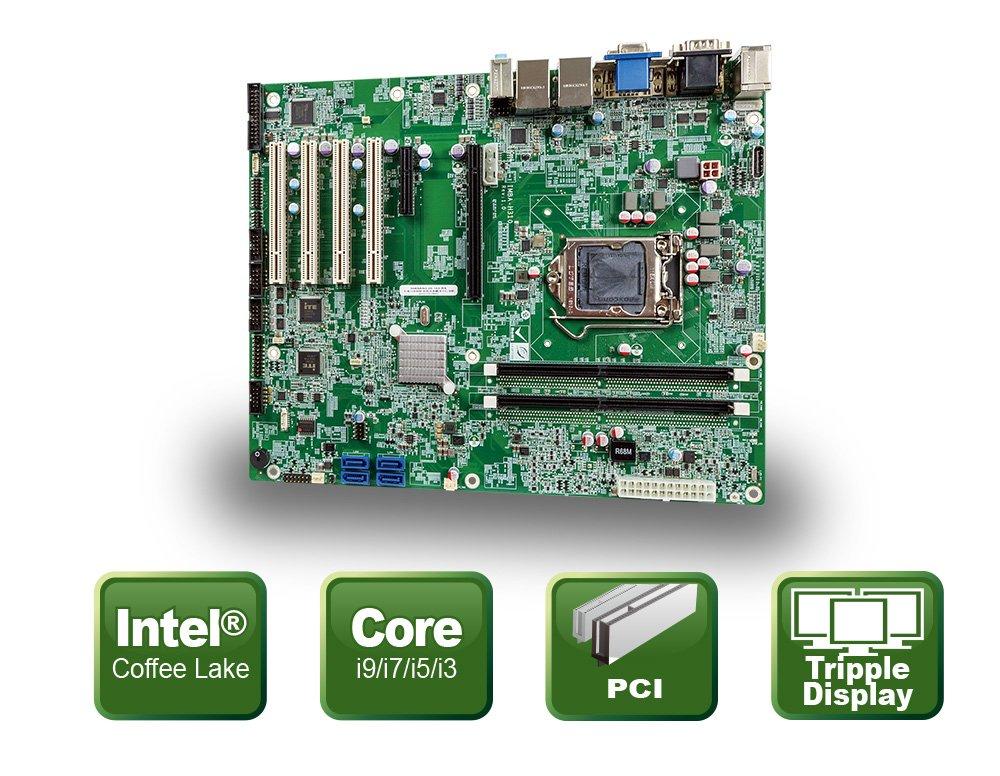

Perform computationally intensive applications and compatibility for older PCI form factor plug-in cards. These are two of the features that make up the IMBA-H310 motherboard from ICP Germany. The mainboard in standard ATX form factor is equipped with the Intel® H310 chipset and supports the 8th and 9th generation Core-I processors. By using the Intel Core-I9 or I7 processors, sufficient performance is available for computationally intensive applications. The IMBA-H310 can be equipped with up to 64 GB DDR4 memory with a maximum clock frequency of 2666 MHz. Furthermore, the IMBA-H310 offers four PCI slots for the assembly of older plug-in cards, one PCIe x16 slot and one PCIe x4 slot. In addition, four USB 3.2 Gen 1, four USB 2.0, five RS-232, one RS-232/422/485 interface, one LPT port, two PS/2 and eight digital I/O are available. Three independent display outputs provide the ability to connect displays with older connectors. These include a VGA with 1920×1200 resolution, a DVI-D with 2560×1600 and an internal DisplayPort with 4096×2304 resolution.

Four SATA 6Gb/s ports are available for storage media. In addition, the IMBA-H310 offers a pin header for the use of an optional TPM module. Upon customer request, ICP Germany assembles the IMBA-H310 with matching RAM and CPU.

ICP. Industrial Computer Products …by people who care!

Product Link

https://www.icp-deutschland.de/industrie-pc/cpu-boards-cpu-karten/mainboards/atx-imba/imba-h310-r10.html

Datasheet

https://files.icp-deutschland.de/produkte/KC002807/web/icp/IMBA-H310-datasheet-20210129.pdf

Specifications

• ATX Motherboard for Intel® 8th/9th Gen.
  Core^TM i9/i7/i5/i3 Celeron® and Pentium® processors
• Chipset: Intel® H310
• 64GB DDR4 SDRAM
• Three independent display outputs: DVI, VGA internal DisplayPort (DP)
• Dual LAN, USB, COM and LPT and SATA 6Gb/s
• Extensions: PCIe x16 and x4, four PCI slots
• Operating temperature: -20°C~+60°C

Applications

• Industrial Automation
• Industrial PC Systems
• Retrofit PC system for PCI cards
