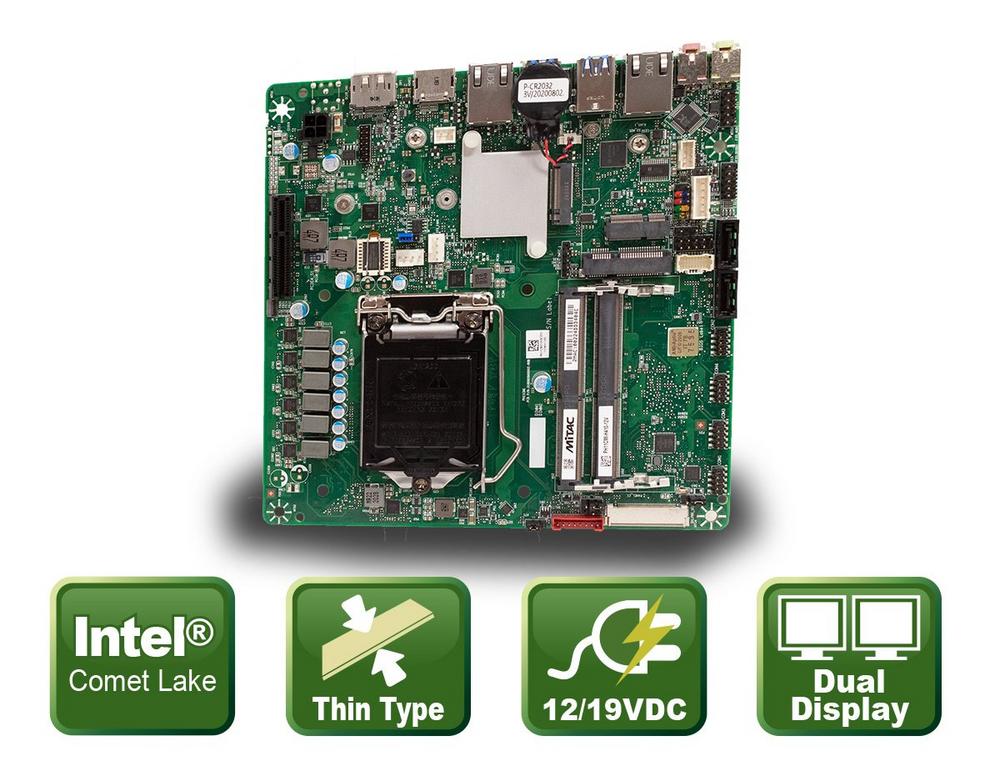

Behind the term PH11CMI hides a new motherboard from ICP Germany in the Thin Mini-ITX form factor, which supports the 10th generation of Intel® CoreTM processors. The mainboard in the classic size of 170 x 170 mm only has a height of 20 mm. The PH11CMI is equipped with the Intel® H410 chipset and features an LGA 1200 socket. All Intel® CoreTM I processors of the 10th generation with 10 cores and 35 Watt thermal design power as well as processors with 8 cores and 65 Watt thermal design power can be used on the PH11CMI. Two DDR4 SO-DIMM sockets allow the use of up to 64GB non-ECC memory with a maximum clock frequency of up to 2933 MHz. The integrated Intel® HD graphics unit offers dual display support at a maximum resolution of 4K. On the PH11CMI, an HDMI port with a resolution of up to 4096×2160 pixels, a display port with a maximum of 4096×2304 pixels and an LVDS port with a full HD 1920×1200 pixel resolution are available for connecting displays. Optionally, the LVDS port can be replaced by an eDP port with 4096×2304 pixel resolution. Furthermore, an Intel® I219M and an Intel® I211-AT Gigabit LAN, four USB 3.2 (generation 1), five USB 2.0, two SATA-6G ports, three serial RS-232 and one serial RS-232/422/485 as well as audio MIC-In and LINE-Out interfaces are available. The MiAPI pin header also provides 10 GPIOs, watchdog, SMBUS, brightness control for displays and motherboard monitoring functionality. For expansion, the PH11CMI offers a PCI-Express 3.0 x4 slot, an M.2 2242/2280 M-Key and an M.2 2230 slot with E-Key. A TPM pin header optionally enables the use of the TPM NPCT750 module board. The PH11CMI is offered in two voltage input variants with 12 volts or 19 volts DC. Both variants are designed for a temperature range of 0 to 60°C and meet CE/FCC Class B requirements. Upon customer request, ICP also delivers the PH11CMI as a bundle with processor, industrial RAM and storage medium.

ICP. Industrial Computer Products …by people who care!

Specifications

• Thin Mini-ITX form factor
• Intel® Comet Lake 10th Gen. Core^TM i9/i7/i5/i3 LGA CPU
• Support for 35 Watt 10-core and 65 Watt 8-core Core^TM CPUs
• Intel® H410 chipset
• 64GB DDR4 SO-DIMM memory
• Dual Display Support
• 1x M.2 2280, 1x M.2 2230, 1x PCIe x4, 1 mPCIE
• Intel® GbE Ethernet, USB3.2, HDMI, DP, LVDS/eDP, RS-232

Applications

• Panel PC and Embedded Systems
• Compact PC Systems
• Industrial PC Systems

Image and Video Processing
