The plastic enclosures are available in 2 sizes: the smaller version S with 142 x 81 x 46 mm and the version M with 173 x 101 x 59 mm (each in H x W x D). The SMART-CONTROL is available from stock in the flame-resistant material ASA+PC-FR (UL 94 V-0) with high UV protection, in the colour RAL 9002 (off-white). The standard OKW enclosures can be finished by means of mechanical processing, printing / lettering, EMC aluminium coating and assembly processes in accordance with customer specifications – the options are extremely diverse.

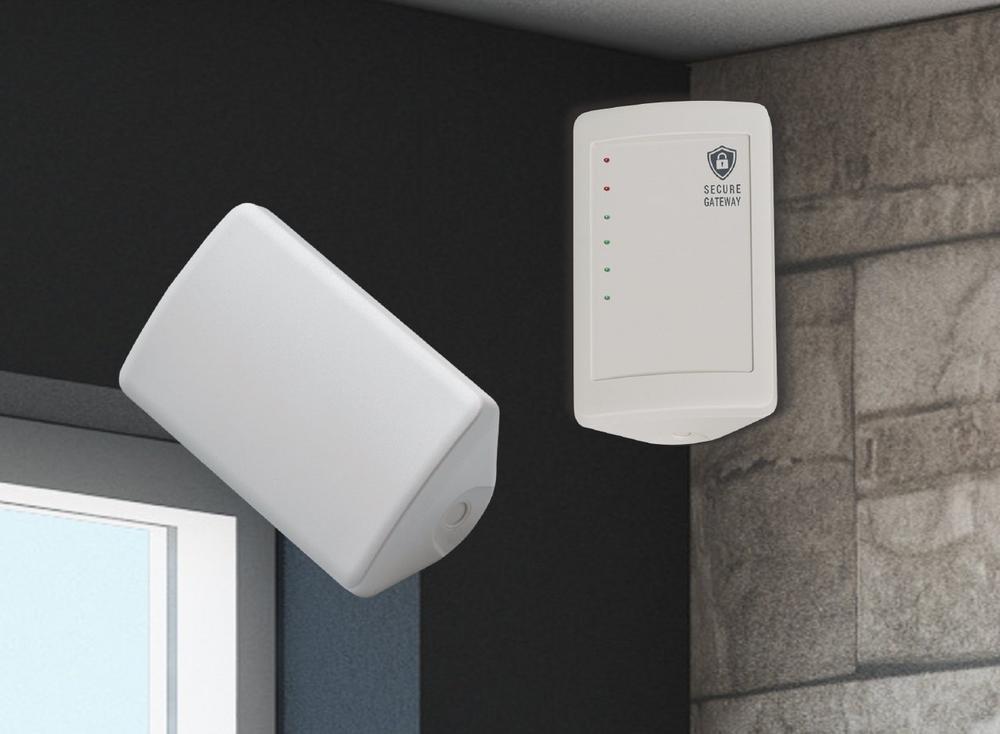

The range of wall and table top enclosures was designed in two parts with one top part and one bottom part each. The upper parts can be ordered in 2 different versions – as convex curved parts or with recessed operating areas for membrane keypads. There are fastening pillars in the top part as well as in the bottom part for mounting parts and PCBs. Protection class up to IP55 is possible with the help of an optional seal (available from the accessory range). The individual parts are screwed together on the rear of the enclosure using Torx stainless steel screws. A desktop stand set (accessory) ensures reliable desktop positioning and an ergonomic reading angle of 45° when the enclosure is set up horizontally. Assembly is simple and quick through snap-in installation with an adapter which is screwed directly to the enclosure. The same universal adapter is also used to mount the enclosure on the wall or, innovatively, in 90° inside corners. The wall suspension element is also included in the range of accessories.
The SMART-CONTROL’s fields of application are extremely diverse and range from security and monitoring technology, environmental technology, IoT/IIoT, gateways, measurement and control technology to medical and laboratory technology.
Gehäuse und Drehknöpfe
OKW bietet formschöne, ergonomisch günstige Standardgehäuse und Drehknöpfe aus Kunststoff und Aluminium für die OEM Elektro- und Elektronik-Industrie. Abgestimmt auf die jeweilige Kundenanwendung ergänzen funktionale Zubehörteile, eine EMV Aluminiumbeschichtung sowie elektromechanische Komponenten die Standard-Produkte auf vielfältige Weise. Bei Bedarf liefern wir die Gehäuse und Drehknöpfe einbaufertig – auch in kleinen Stückzahlen – nach Ihren Anforderungen und Wünschen.
Standard Electronic Enclosures and Potentiometer Tuning Knobs
Smart ergonomic standard enclosures and potentiometer knobs for OEM electronics. OKW’s award-winning aesthetic designs will transform your products. View our huge range of plastic and aluminium cases as well as tuning knobs below. Our designs are highly versatile so you can find the cases you need quickly and easily. Products also include membrane keyboards; contacts and connections; EMC shielding; compatible parts (batteries, displays, emitters, potentiometers, screws etc.). All OKW enclosures can be customised to your precise requirements – even in low volumes – ready for your PCBs.
