Compact DC/DC converter for industrial and mobile applications
The DC160WS is ideally suited for use in mobile applications within the 12V or 24V vehicle electrical system as well as for industrial applications with voltage fluctuations in 12V or 24V DC supply systems. With a footprint of only 95 x 45 mm and a height of 1" (25.4 mm), the highly efficient DC/DC converter can be perfectly integrated into compact and closed IPC and Embedded BoxPC systems.
Optimal heat management with contact cooling
The thermally optimized design ensures minimal heat build-up and high reliability. For optimal heat dissipation between the highly efficient power components on the circuit board bottom and the chassis of the application, the DC160WS already includes a suitable heat transfer pad and 5x distance bolts. In particular, the additional mounting hole in the center of the PCB ensures a permanently safe thermal connection to the housing.
Connectivity and safety
The DC160WS has stable screw terminals at the input and output – customer-specific connection plugs are available on request. A polarity protection at input, short-circuit, overvoltage and overtemperature protection are integrated as standard. In addition, a remote on/off signal input for external wiring is available.
Long-term availability and value added services
Bicker Elektronik grants a three-year warranty on the DC160WS, as well as a long-term availability of at least 5 years. In addition, Bicker Elektronik offers comprehensive value added services, especially for system developers. These include personal on-site consulting during the design-in process by experienced sales engineers and subsequent project support by the sales, development and service teams of Bicker Elektronik. As part of the Power+Board program, Bicker Elektronik customers receive tested and perfectly matching PSU + Mainboard bundles plus comprehensive industrial-grade accessories from a single source. On request, the specialists from Bicker Elektronik realize customer-specific special solutions and also offer extensive laboratory and measuring services for complete customer systems.

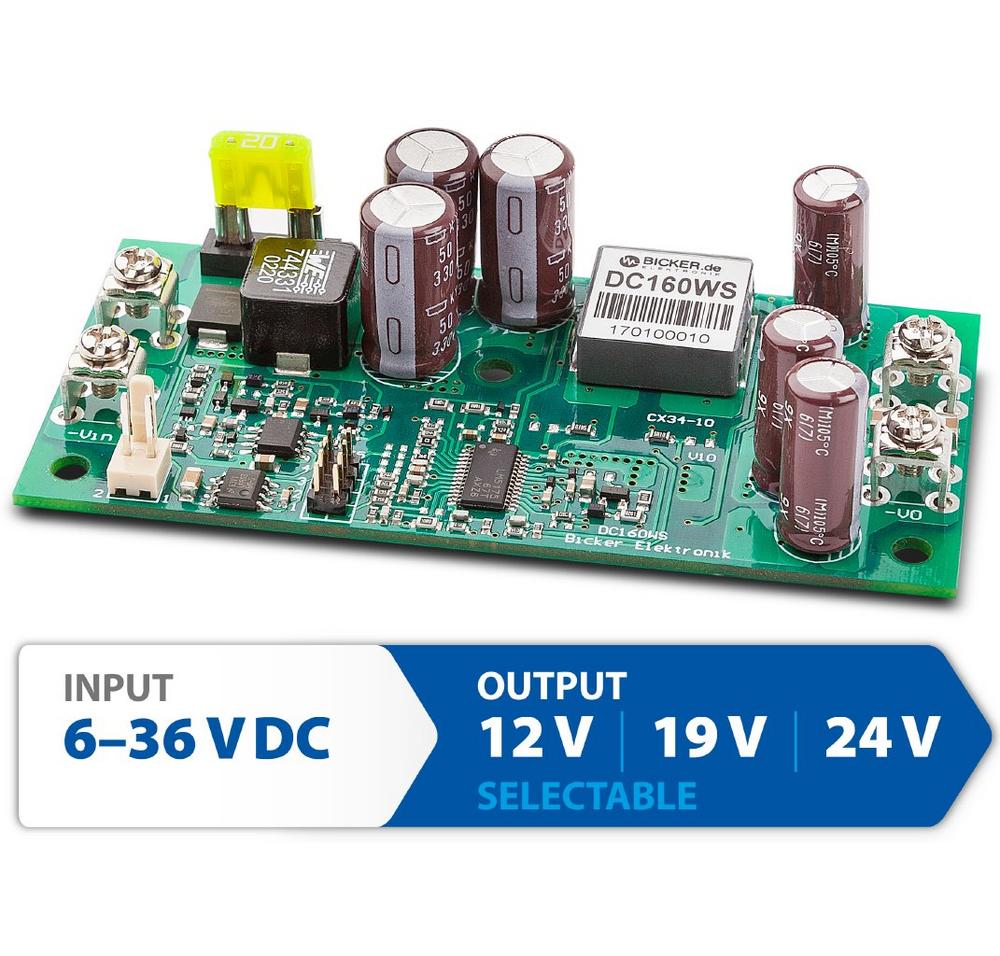

Bicker DC160WS
All benefits at a glance
- DC/DC converter with 160 Watt continuous fanless power
- High efficiency up to 98%
- Ultra-wide input voltage range 6…36 VDC
- Selectable DC output voltage via jumper 12 V, 19 V or 24 V
- Extended temperature range -20…+70°C
- Remote On / Off input
- Long-term reliability (MTBF> 410 000 h)
- Compact and thermally optimized design
- Suitable for reliable 24/7 continuous operation
- Including thermal pad, jumper and distance bolts for housing assembly
- Customized connection plugs possible
- Long-term availability at least 5 years
- 3 years warranty
Direct link to DC160WS:
https://www.bicker.de/…
Bicker Elektronik GmbH, based in Donauwoerth (Germany), has been developing, manufacturing and selling highly reliable power supply solutions (3 to 24,000 watts), UPS systems and system components for 25 years. These include industrial, IPC and medical power supplies, encapsulated modules, DIN rail power supplies, DC/DC converters and modular DC UPS systems with long life energy storage devices (Supercaps, LiFePO4, Li-Ion or lead batteries) for uninterruptible power supply.
The portfolio is rounded off by matching industrial mainboards from the manufacturers AAEON, ASRock, Avalue, Fujitsu and Perfectron. The tested "Power+Board" bundles save valuable time and money in system development. In addition, Bicker Elektronik offers suitable processors and storage solutions in industrial quality.
In addition to the high product quality, excellent service and extensive know-how in development offer the decisive added value for the international customers of Bicker Elektronik. With personal design-in consulting, many years of experience and flexibility in the implementation of individual requirements, Bicker Elektronik provides its customers with the right tailor-made solution in a timely manner. The extensive warehousing at the headquarters in Donauwoerth also guarantees a fast and timely delivery. The company is TÜV certified according to ISO 9001: 2015.
The target markets of Bicker Elektronik are Industry 4.0 / IIoT, automation technology, robotics, medical and laboratory technology, measurement and control systems, transportation, maritime, energy, communication and information technology, gaming, POS / POI, digital signage, security and building technology.
