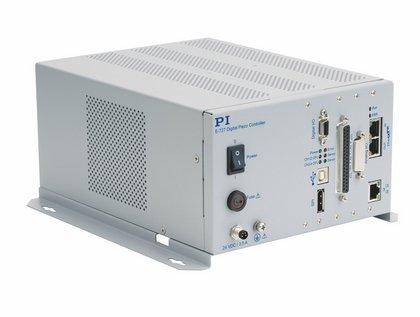

Now, the digital controller can be operated by all industrial motion controllers from ACS Motion Control via EtherCAT and can therefore be integrated into the automation environment as "intelligent driver" for two- or three-axis piezo-based nanopositioning systems, irrespective of whether they work with capacitive, piezoresistive or strain gauge sensors.

A P-I controller with two notch filters optimized for piezo operation allows a high control bandwidth (20 kHz). Intelligent servo algorithms minimize the settling times, which allows repeatability into the subnanometer range. Further highlights of the digital controller include 4th-order polynomial linearization for the mechanics and electronics, an integrated data recorder, an ID chip for fast and quick exchange of the system components as well as subordinate, programmable drift compensation. In addition, there is the option of dynamic digital linearization. This DDL function lowers phase shift and trajectory errors to an indiscernible level in the case of dynamic-periodic applications. This is important for scanning applications that have to identify a particular position and reach it again accurately.

For more information, refer to our >> product page
