The isoBAT425 is intended for monitoring the insulation resistance and the voltage of a battery during its assembly from individual battery cells. It monitors the insulation resistance of batteries with nominal system voltages of DC 0…400 V. The maximum permissible system leakage capacitance C_e is 1.0 μF.

The isoBAT425 measures the insulation resistance R_F and the leakage capacitance C_e of the battery to earth. In addition, the voltages U_n between L+ and L-, U_L+e between L+ and earth as well as U_L-e between L- and earth are measured.

The first step consists of assembling the battery in two parallel strings (plus and minus string) which are not interconnected. During the second step, the two strings are connected to form a complete battery by means of another battery. The resulting measured values allow diagnosing the type and location of the insulation fault. In the LC display, the fault location is marked with a plus or minus sign preceding the value R_F.

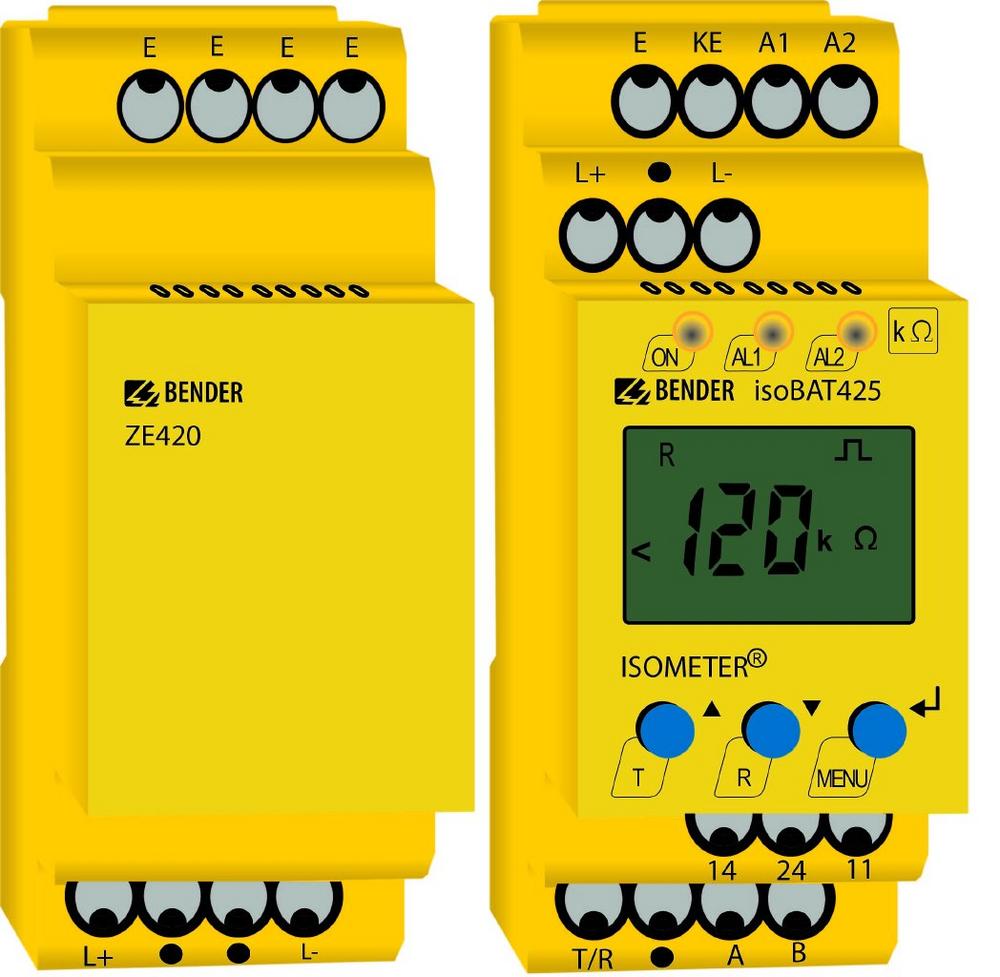

For open battery strings, the ZE420 terminal element provides a “low-resistance” connection (10 kΩ) between the terminals L+ and L-, necessary for the measuring functions of the isoBAT425. An optional 1.5 mA current limitation is used in series with this resistance. It starts above U_n = 25 V and increases the internal resistance of the terminal element. For this reason, in the event of a cross fault the system connection monitoring may be additionally triggered.
