The BLF 3.5 PUSH IN connection system stands out with a current carrying capacity of 17.5 A, as well as a rated voltage of 320 V, accepts solid and stranded-wire conductors with and without wire-end ferrules from 0.14 to 1.5 mm² (IEC) and 26 to 16 AWG (UL). The conductors can be easily inserted into the contact point without tools. Done. Stranded-wire conductors without wire-end ferrules are connected by opening the contact point and pushing the button. The PUSH IN connection with its functional lock & release levers supports fast, reliable handling during installation and maintenance. The safety rib prevents accidentally pushing the lever when plugging. Unambiguous and clear equipment ID is guaranteed by large marking areas, as well as easily legible markers on the "pusher" on each contact point.

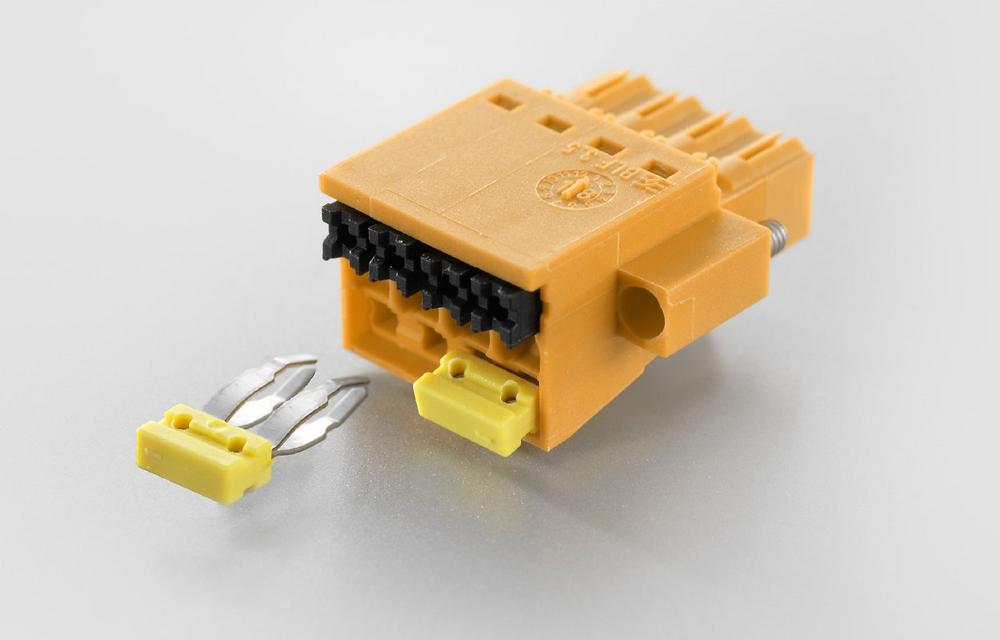

Optional standard cross-connections (ZQV) allow the function of a bus system, ensuring the power supply is maintained even if a device is replaced.

The plug-in connector has two mounting flanges so fixation is possible either with the lock & release lever or by means of a classical cable gland. Strain relief allows the plug to be pulled out in tight installation situations; connectors can also be fixed to it with a cable tie.

Weidmüller offers the OMNIMATE^® Signal BLF 3.5 PCB plug-in connectors in the standard colours orange and black, and on request also in the colours green, grey, blue, red and yellow. The colours of the PUSHERS for opening the contact point are configured orange and black (standard) and optionally green, grey, blue, red or yellow.

The BLF 3.5 closed on the side with the PUSH IN connection system is available with 2 to 24 poles; with a side flange from 2 to 18-pole, as well as a 24-pole version; with a side lock & release lever from 2 to 16-pole plus a 24-pole version, and finally the version with lock & release lever in 2 to 18 poles.

With three service packages, the OMNIMATE Device Technology division supports customers in the development of innovative devices. The service packages include a comprehensive component library for PCB design software, the "application-oriented product recommendation" Internet-based selection aid AppGuide, and the already well established 72-hour sample service. The sample service means that device designers lose no time: Weidmüller delivers samples of its device connection components and electronics housings to any location within a maximum of 72 hours – including the OMNIMATE^® Signal BLF 3.5 PCB plug-in connectors.

Weidmüller – electrical connection, transmission and conversion of power, signals and data in the industrial environment. – Let’s connect.

Additional information: www.weidmueller.com
