Pairing the LINCam with pulsed light sources allows turning any conventional fluorescence microscope into a powerful, scanning-free, time-resolved imaging instrument. Using it in conjunction with off-the-shelf optics makes it suitable even for larger scale applications such as Light Detection and Ranging (LIDAR).

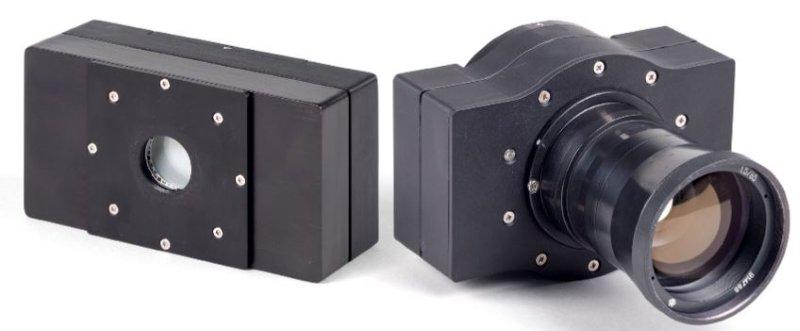

The heart of the LINCam is a position sensitive microchannel plate based detector assembly coupled to a data acquisition system with high time resolution. The camera achieves high spatial resolution equivalent to a CCD camera with 1000 × 1000 pixels. The data acquisition system records both position and time information for each detected photon in spectral ranges from 200 to 800 nm and can achieve an overall time resolution down to 50 ps (FWHM).
PicoQuant is a leading research and development company specializing in optoelectronics, which was founded in 1996. The company, based in the science and technology park of Berlin-Adlershof, Germany, is a worldwide leader in the field of single photon counting applications. The product portfolio encompasses picosecond pulsed diode lasers and LEDs, photon counting instrumentation, fluorescence lifetime spectrometers, FLIM and FCS upgrade kits for laser scanning microscopes as well as time-resolved confocal and super-resolution microscopes. Since April 2008 Sales and Support in North America is handled by PicoQuant Photonics North America Inc. The PicoQuant group employs currently around 80 people.
